| Lugar de origem: | Zhejiang, China |
|---|---|
| Marca: | Factory or OEM / ODM |
| Certificação: | CE, ROHS, REACH, IP68 |
| Número do modelo: | Série TSCG |
| Quantidade de ordem mínima: | 500 peças |
| Preço: | factory direct sale |
| Detalhes da embalagem: | 100 peças por saco (embalagens especiais também estão disponíveis mediante solicitação) |
| Tempo de entrega: | normalmente 10-14 dias |
| Termos de pagamento: | T/T, L/C, Western Union |
| Habilidade da fonte: | 50.000 partes/mês |
| Material: | Aço inoxidável 304/316/316L | Superfície: | Tratamento de lustro |
|---|---|---|---|
| Cor: | Cinza prateado | inserção de plástico: | UL-Poliamida (Nylon) 6 |
| Inflamabilidade: | Classificação V-2 conforme UL94 | Selo: | Borracha FKM/FPM (FFKM/FFPM) |
| O-ring: | Borracha FKM/FPM (FFKM/FFPM) | Proteção: | Classificação IP68 |
| Especificações: | M16x1,5 (5-10mm) | Características:: | Impermeável, resistente a ácidos e óleos, resistente à expansão, resistente aos raios UV, antienvelh |
| Função: | Fornecer uma resistência extra para puxar para fora e alívio de tensão stron |
Main features:
♦ Saddle clamp: a distinct U-shaped or two-part clamp that fastens around the cable, providing extra mechanical grip and strain relief, essentially "saddling" the cable for maximum security.
♦ Traction relief (strain relief, pull relief): the main purpose is to grip the cable firmly, preventing tension or pulling from damaging internal wires or disconnecting the cables.
♦ Sealing: creates a tight seal (IP68) to prevent dust, water, oil, and other contaminants from entering the enclosure.

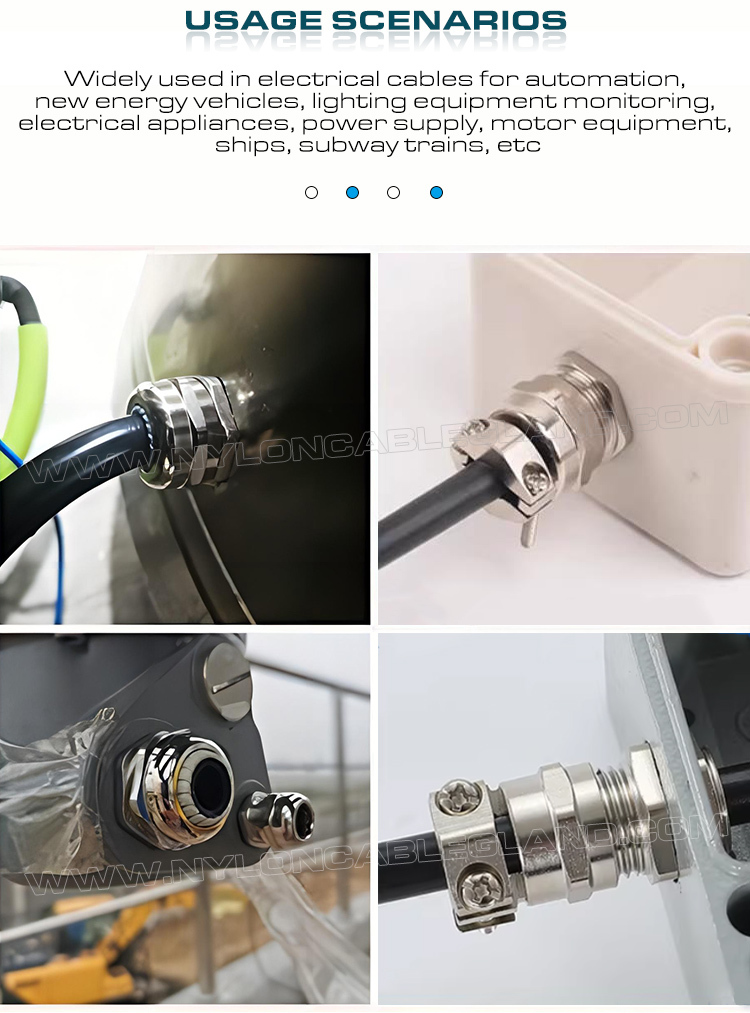

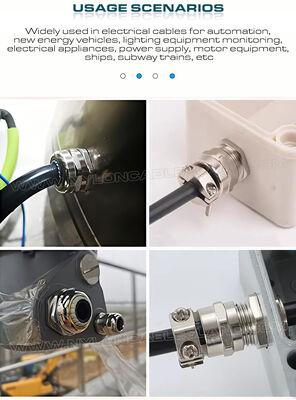

♦ Harsh environments: ideal for building sites, portable equipment, machinery, and electrical motors where vibration, impact, or rough handling is common.
♦ Mechanical security: secures the cable to the equipment or panel, providing a robust mechanical connection.
Information:
| Brand name: | Factory or OEM / ODM |
| Place of origin: | Zhejiang, China |
| Specification: | M16x1.5 (clamping range: 5-10mm) |

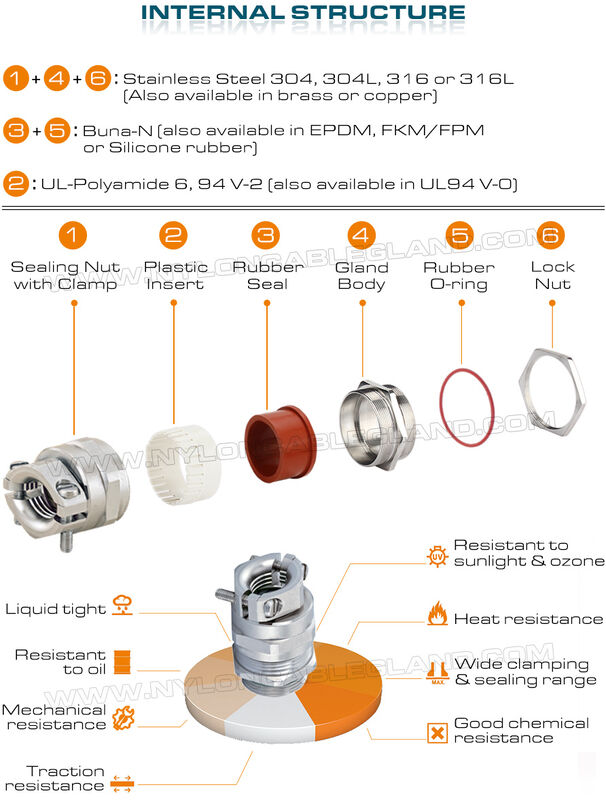

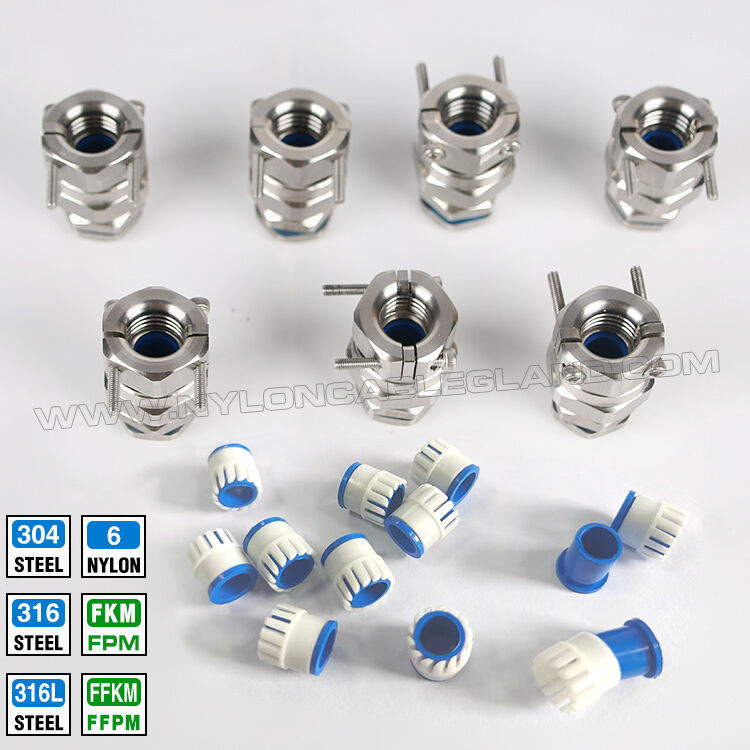

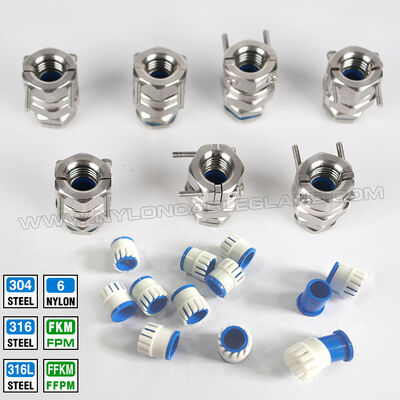

| Materials: | Stainless steel type 304, 316 or 316L for locknut, sealing nut and gland body |
| UL-polyamide 6, 94V-2 for plastic insert | |
| FKM / FPM (FFKM / FFPM) rubber for seals & O-rings | |
| Color: | Silver gray |
| Advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Short thread or long thread, both are available |
| Operation temp.: | Static: -40℃ to 100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Yes, available |
| Delivery time: | Normally 10-14 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested |
