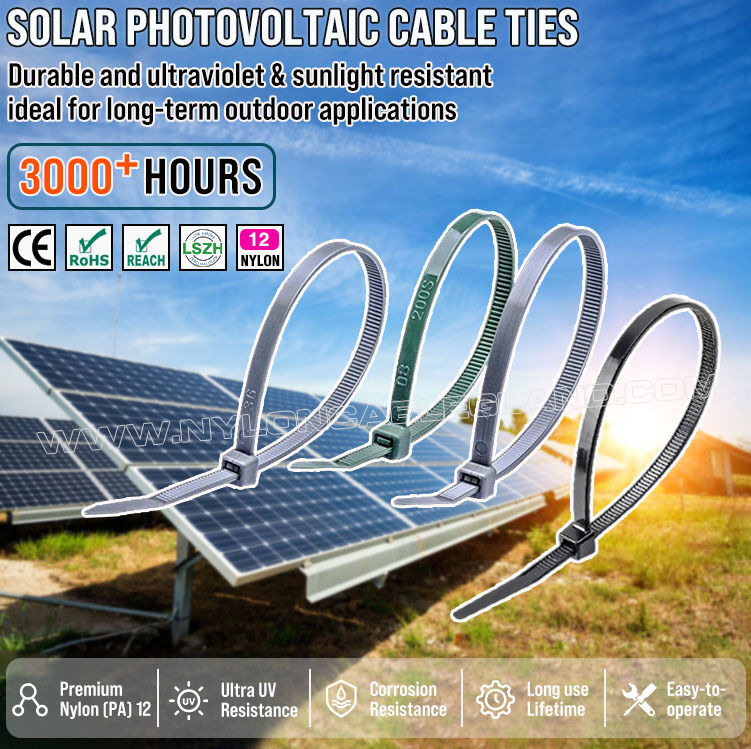

Nylon (PA) 12 UV-Resistant Cable Zip Tie 300mm x 4.8 (Ø 3-80mm), Excellent Salt & Chemical Resistance, for Solar Photovoltaic Industry

Informação Básica
Lugar de origem: Zhejiang, China
Marca: Factory or OEM Service
Certificação: CE, UKCA, ROHS, REACH, PAHS
Número do modelo: 4.8 x 300 mm
Quantidade de ordem mínima: 10.000 peças
Preço: factory direct sale
Detalhes da embalagem: 100 peças por saco (uma embalagem especial também está disponível mediante pedido)
Tempo de entrega: Normalmente 8 a 12 dias
Termos de pagamento: T/T, L/C, Western Union, numerário
Habilidade da fonte: 5,000Mil peças por mês
Informação detalhada
Material: Poliamida Virgem 12 Cor: Preto
Tipo: Autotravamento Avaliação: UL94 VHB
Temperatura de trabalho: -40℃~+85℃ Vantagens: Resistente ao sal, produtos químicos e ultravioleta
Uso: Proteja e organize cabos, fios, tubos, condutas, etc. Aplicativo: Perfeito para ambientes solares, fotovoltaicos e extremos
Embalagem: 100 peças por saco, outras embalagens especiais também estão disponíveis OEM: Logotipo, tamanho, cor ou embalagem personalizados podem ser suportados

Descrição de produto

1. What Is A Nylon (Polyamide) 12 Cable Tie?



A Nylon (Polyamide) 12 cable tie is a type of premium cable management fastener crafted from Polyamide 12 (a high-performance engineering thermoplastic). Like a conventional cable tie, it is used to bundle, organize, and secure cables, hoses, pipes, and other components. However, Polyamide 12 offers significantly better environmental resistance than the more common Nylon (Polyamide) 66.



It is specifically designed for applications where cable bundles are exposed to:

  • High humidity
  • Saltwater or marine environments
  • Chemicals and oils
  • UV radiation
  • Low temperatures
  • Outdoor weathering
  • Industrial pollution

Because of their excellent durability and long service life, they are widely used in demanding industrial and outdoor installations.



2. Why Do We Need the Nylon 12 Cable Ties?



Choosing Polyamide 12 cable ties can reduce long-term maintenance costs and improve system reliability.



Key reasons include:

  • Longer service life
  • Better resistance to moisture and humidity
  • Superior chemical resistance
  • Excellent UV stability for outdoor use
  • Reliable performance in cold climates
  • Reduced risk of brittle failure
  • Greater flexibility and vibration resistance
  • Lower maintenance and replacement frequency
  • Better protection for critical wiring systems
  • Suitable for demanding industrial environments

Although Polyamide 12 cable ties have a higher initial cost, they often provide a lower total cost of ownership in harsh applications due to their extended life time and reduced replacement needs.



3. When Are Polyamide 12 Cable Ties Needed?



Polyamide 12 cable ties are recommended when installations require long-term reliability under demanding conditions, such as:

  • Outdoor electrical installations
  • Coastal or marine environments
  • High-humidity locations
  • Cold climates
  • Chemical processing facilities
  • Oil and gas installations
  • Food processing plants with frequent washdowns
  • Heavy industrial machinery
  • Renewable energy systems
  • Transportation equipment exposed to vibration

For standard indoor cable management in dry, temperature-controlled environments, Polyamide 6.6 cable ties are often sufficient and more economical.



4. What Are The Features & Advantages Of Nylon 12 Cable Ties?



4.1. Excellent Moisture Resistance

One of Polyamide 12's biggest advantages is its very low moisture absorption.



Typical moisture absorption:

  • Polyamide 12: approximately 0.5–1%
  • Polyamide 6.6: approximately 2.5–3% (equilibrium at normal humidity)

Lower moisture absorption means:

  • More stable dimensions
  • More consistent tensile strength
  • Better locking performance
  • Reduced swelling

This is particularly important in humid climates.



4.2. Superior Chemical Resistance

Polyamide 12 performs well when exposed to:

  • Oils
  • Grease
  • Hydraulic fluids
  • Fuels
  • Diesel
  • Gasoline
  • Salt solutions
  • Mild acids
  • Mild alkalis
  • Industrial chemicals

This makes Polyamide 12 ideal for harsh industrial environments.

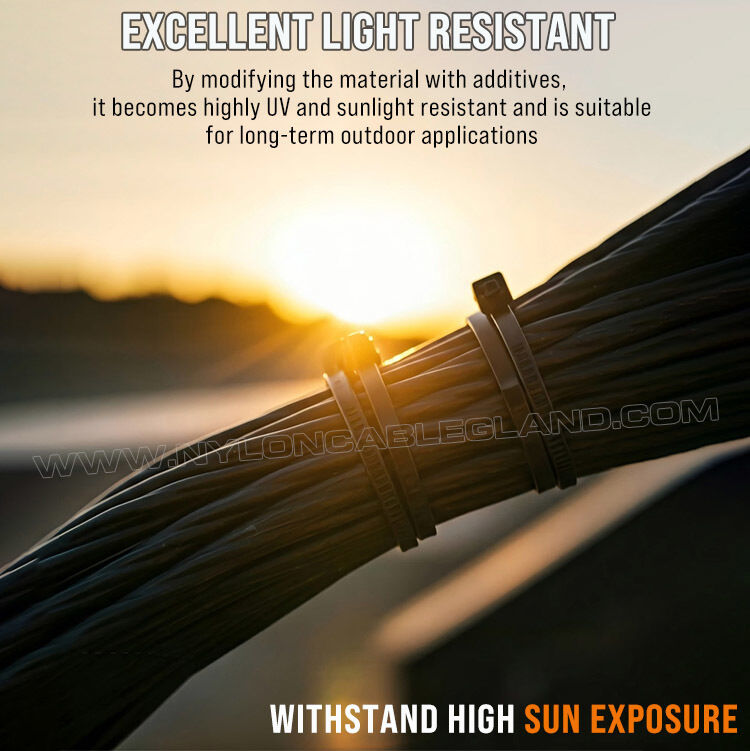

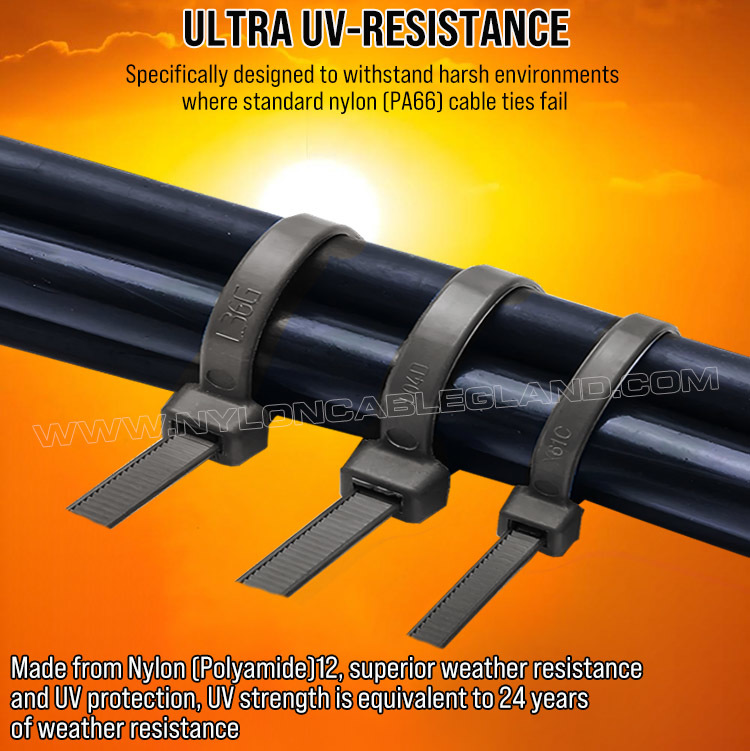

4.3. Excellent UV Resistance

Many Polyamide 12 cable ties are manufactured with UV stabilizers.



Advantages include:

  • Long outdoor service life
  • Better resistance to sunlight
  • Reduced brittleness
  • Less cracking after prolonged exposure

This makes them suitable for solar installations and outdoor telecommunications.



4.4. Outstanding Low-Temperature Performance

PA12 remains flexible even in very cold environments.



Typical operating temperature:

  • −40°C to +85°C (Some premium grades may tolerate up to +105°C)

Unlike Polyamide 6.6, Polyamide 12 is much less likely to become brittle in freezing conditions.



4.5. Better Flexibility

Polyamide 12 is naturally more flexible than Polyamide 6.6.



Benefits:

  • Easier installation
  • Better vibration resistance
  • Reduced stress concentration
  • Lower risk of cracking

4.6. Excellent Fatigue Resistance



Polyamide 12 withstands repeated movement and vibration.



Suitable for:

  • Moving machinery
  • Rail vehicles
  • Automotive wiring
  • Wind turbines

4.7. Long Outdoor Service Life



Because Polyamide 12 combines:

  • UV resistance
  • Moisture resistance
  • Chemical resistance

It typically lasts much longer outdoors than standard Nylon 6.6 cable ties.



4.8. Reduced Stress Cracking

Polyamide 12 is much less susceptible to environmental stress cracking caused by:



  • Chemicals
  • Humidity
  • Mechanical loading



5. What Is The Difference Between Polyamide 12 & Standard Polyamide 66?



Comparison: Polyamide 12 vs Standard Polyamide 6.6



Property Nylon (Polyamide)12 Standard Nylon 66 (PA66)
Moisture absorption Very low Moderate to high
Dimensional stability Excellent Moderate
UV resistance Excellent (UV grades) Fair (unless UV stabilized)
Chemical resistance Excellent Good
Oil resistance Excellent Moderate
Saltwater resistance Excellent Moderate
Flexibility High Moderate
Low-temperature performance Excellent (down to about −60°C) Good (typically down to about −40°C)
Outdoor durability Excellent Moderate
Fatigue resistance Excellent Good
Cost Higher Lower
Typical service life outdoors Longer Shorter



6. In Which Fields Or Industries Are These Cable Ties Used?



Polyamide 12 cable ties are widely used in industries where environmental durability is critical.



Industry Typical Applications
Solar energy Securing photovoltaic cables and outdoor wiring
Wind power Cable management inside towers and nacelles
Marine Ships, ports, offshore platforms, docks
Oil & gas Refineries, drilling equipment, pipelines
Chemical processing Cable routing around chemical equipment
Automotive Engine compartments, chassis wiring, electric vehicles
Rail transportation Cable harnesses exposed to vibration and weather
Aerospace Selected lightweight cable management applications (subject to certification requirements)
Telecommunications Outdoor fiber optic and communication cabinets
Construction Building facades, outdoor electrical systems
Utilities Power distribution, substations, smart grid infrastructure
Mining Heavy equipment, conveyors, outdoor electrical systems
Water treatment Pumps, filtration systems, wastewater facilities
Food & beverage Washdown areas where approved materials are specified
Industrial automation Robotics, moving machinery, cable carriers



7. Conclusion



Nylon (Polyamide) 12 cable ties are a premium alternative to standard Nylon 66 cable ties. Their defining advantages are low moisture absorption, excellent chemical resistance, superior UV and weather resistance, and outstanding low-temperature flexibility. These properties make them especially suitable for outdoor infrastructure, marine installations, renewable energy, transportation, and heavy industrial environments where standard Polyamid 6.6 cable ties may degrade more quickly.



For general indoor applications, Polyamide 6.6 cable ties remain a cost-effective choice. However, when long-term performance in harsh environmental conditions is essential, the higher upfront cost of Polyamide 12 cable ties are often justified by their greater durability, improved reliability, and reduced maintenance over the product's service life.
